Rear Axle Flange Kit

Mercedes-Benz

Mercedes Benz 230SL 250SL 280SL Pagoda (R113/W113)

Original

Manufacturer

Mercedes-Benz

Part number

A1085860135

Class

Premium

Condition

New, Genuine

Repr. kit, diff. flange

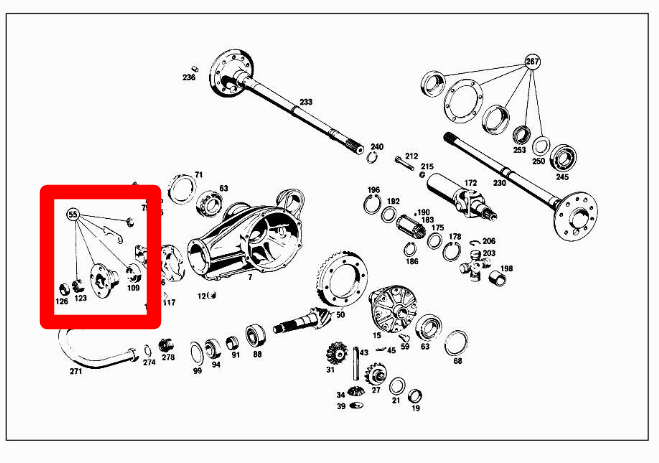

0	A 108 350 03 00	Rear Axle			0
0	A 111 350 00 03	Axle Housing	1:3.92		0
7	A 108 350 00 20	Axle Housing			1
12	A 186 997 00 32	Screw Plug			2
15	A 108 350 02 23	Differential Gear			1
0	A 108 353 00 01	Differential Case			0
19	A 108 353 00 48	Ring			1	From €69.51
21	A 184 353 00 62	Thrust Washer	As Required	1.3 MM	2	From €6.89
0	A 184 353 01 62	Thrust Washer	As Required	1.4 MM	2	From €6.29
27	A 108 353 01 15	Side Gear			0
27	A 108 350 01 40	Differential Pinion	Left		1	From €443.55
34	A 116 353 02 14	Differential Pinion			0
34	A 140 353 05 14	Differential Pinion			2	From €44.94
39	A 112 353 01 24	Spherical Washer			2	From €41.90
43	A 108 353 00 21	Pin			1	From €223.08
45	A 112 993 00 30	Spring			1
50	A 111 350 08 39	Ring Gear And Pinion	1:3.92		1	From €3,292.40

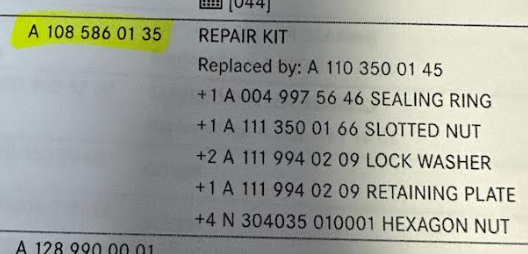

55	A 108 586 01 35	Repair Kit	Drive Pinion		1	From €446.64
59	A 128 990 00 01	Screw			10	From €34.87
63	A 000 980 19 02	Tapered Roller Bearing			2	From €112.50
68	A 112 353 08 52	Spacer Washer	As Required	1.8 MM	1	From €25.69
71	A 112 353 01 25	Screw Collar			1	From €153.28
75	A 180 353 01 73	Lock	As Required		1
79	A 180 994 00 30	Lock			1	From €0.47
84	N 000933 006103	Screw			0
84	N 304017 006018	Screw			2	From €1.76
88	A 000 980 10 02	Tapered Roller Bearing			1	From €55.27
91	A 108 353 00 42	Spacer Bushing			1	From €6.21
94	A 000 980 18 02	Tapered Roller Bearing			1	From €31.15
99	A 112 353 14 52	Spacer Washer	As Required	1.5 MM	1	From €36.71
106	A 110 353 03 08	Cover			1
109	A 005 997 41 46	Seal Ring			1
112	N 304017 008023	Screw			6	From €2.14
117	N 912004 008102	Lock Washer			6	From €0.67
123	A 111 350 01 66	Grooved Nut			1	From €42.77
126	A 111 994 02 44	Lock			1	From €10.08
152	A 108 350 02 19	Rear Axle Tube	Left		1
155	A 108 350 03 19	Rear Axle Tube	Right		1
157	A 180 351 01 50	Bushing			2	From €39.74
161	A 115 350 02 90	Valve			1	From €60.32
167	A 108 351 00 68	Cap			1
172	A 112 350 02 13	Joint			1
175	A 180 357 01 52	Spacer Washer			1	From €18.29
178	A 000 994 29 41	Lock			1	From €9.22
183	A 108 350 00 48	Sleeve			1	From €1,851.91
186	A 188 994 00 41	Lock			2	From €1.69
190	A 180 981 00 86	Roller			114	From €1.25
192	A 188 357 00 52	Spacer Washer			1	From €21.19
196	N 000472 048000	Lock Ring			1
198	A 112 357 03 50	Bushing			1
203	A 112 350 01 28	Universal Joint	With Needle Bearing Bushings And Needles		1	From €704.44
206	A 186 994 12 35	Snap Ring	As Required	2.15 MM	4	From €49.21
212	N 000912 010053	Screw			1	From €46.56
215	N 912004 010102	Lock Washer			1	From €0.67
219	A 110 357 04 91	Boot			1	From €72.57
221	A 110 357 03 91	Boot	Repair Size		1	From €105.34
226	A 002 988 10 78	Clip	Repair Size		9	From €5.35
230	A 108 350 03 10	Axle Shaft	Left		1	From €1,219.61
233	A 108 350 07 10	Axle Shaft	Right		1	From €1,836.11
236	A 115 991 05 60	Dowel Pin			1	From €0.68
245	A 001 981 15 25	Ball Bearing			0
245	A 002 981 23 01	Cylindr. Roller Bearing			2
250	A 183 353 03 73	Lock			2	From €22.08
253	A 153 357 00 26	Grooved Nut			2	From €14.03
259	N 000933 010164	Screw			8
0	N 900288 088003	Clamp	Rear Axle Tube		1
0	N 900288 121000	Clamp	Rear Axle Housing		1	From €7.31
265	A 126 423 00 12	Brake Disc			2	From €81.68
267	A 111 350 00 68	Repair Kit	Rear Axle Shaft Sealing		2	From €121.35
283	A 110 351 00 74	Pin			1	From €313.07
287	A 180 351 01 53	Spacer Tube	As Required	26.0 MM	2	From €91.24
287	A 180 351 15 53	Spacer Tube			0	From €91.24
293	A 180 351 14 52	Spacer Washer	As Required	2.0 MM	2	From €63.05
295	A 180 351 13 52	Spacer Washer			0	From €77.25
299	A 180 351 03 51	Spacer Ring			2	From €23.80
304	A 180 351 09 86	Rubber Ring			4	From €5.95
306	A 180 351 00 74	Pin			1	From €37.35
309	N 000934 008013	Nut			1
311	A 180 994 03 41	Lock			1	From €3.86
313	N 000443 020000	Expansion Plug			1
316	A 180 997 04 30	Screw Plug			1	From €19.05
317	A 180 994 01 12	Lock			1	From €7.93
318	N 071412 006100	Grease Nipple			1
320	N 071412 006200	Grease Nipple			1	From €3.09
322	A 110 350 12 75	Rubber Mounting			1	From €445.92
324	A 109 350 00 32	Support			1	From €578.49
327	N 001473 003001	Grooved Pin			1	From €0.08
329	N 070614 010018	Screw			3
333	A 110 350 10 29	Thrust Arm	Left		1	From €1,169.76
0	A 110 350 11 29	Thrust Arm	Right		1	From €1,169.76
0	A 110 350 14 75	Repair Kit	Thrust Arm		1	From €225.99
335	A 110 352 18 65	Rubber Mounting			0	From €7.27
337	A 111 352 05 09	Pivot Pin			2	From €28.97
339	A 111 352 12 76	Washer			4	From €12.55
342	N 009045 032000	Snap Ring			4	From €2.31
345	A 110 352 01 51	Spacer Ring			4	From €4.72
348	A 111 352 01 71	Screw			4	From €36.32
350	A 111 352 01 73	Lock			4	From €7.32
353	A 110 350 06 75	Rubber Mounting	With Clamping Plate		1	From €321.90
354	A 110 351 00 45	Pad	Top		1	From €57.66
356	N 000961 016004	Screw			1
358	N 912004 016101	Lock Washer			1	From €1.14
360	N 000933 010128	Screw			4
365	A 110 350 04 93	Rod			1	From €87.75
367	N 000934 014008	Nut			1
369	A 111 351 03 40	Bracket			1
371	A 111 351 04 48	Rubber Mounting			2	From €58.56
373	A 111 351 02 40	Bracket			1	From €138.65
375	N 000933 010238	Screw			0
375	N 304017 010028	Screw			1
377	N 000137 010201	Spring Washer			1	From €0.67
379	N 000961 012040	Screw			1
380	N 000137 012203	Spring Washer			0
380	N 000137 012206	Spring Washer			1
382	A 110 351 07 43	Cup			1	From €46.18
384	A 111 351 04 44	Rubber Buffer			2	From €28.41
386	A 110 351 06 43	Cup			1	From €43.37
388	N 000934 012023	Nut			0
388	N 308673 012002	Nut			1	From €1.96
390	N 007967 012000	Nut			1
395	A 110 352 10 65	Rubber Mounting			2	From €22.20
396	A 110 352 00 42	Mounting Plate			2	From €74.06
0	N 304017 008021	Screw	Mounting Plate To Body Floor		4	From €1.25
399	A 108 990 03 40	Washer	Mounting Plate To Body Floor		2	From €3.67
411	N 912004 014100	Lock Washer			2	From €0.76
415	N 000934 014019	Nut			0
415	N 308673 014001	Nut			2	From €2.54
