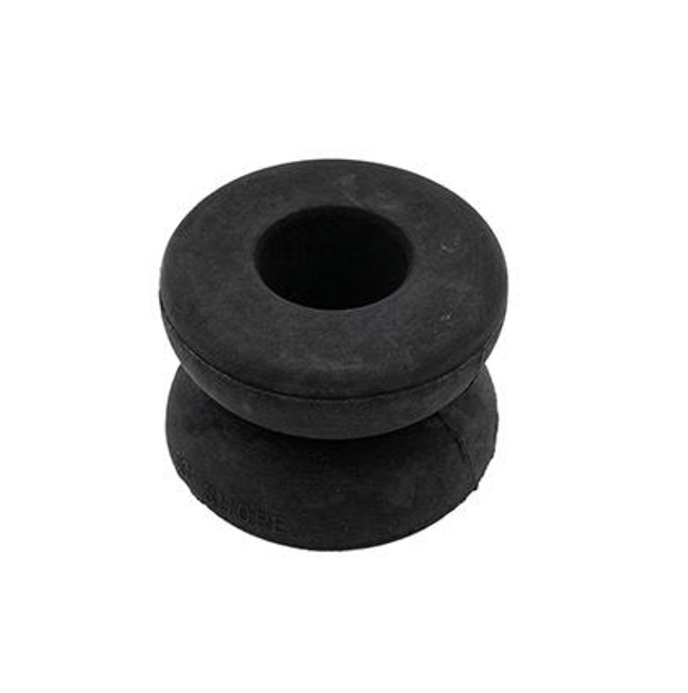

Mercedes Benz SL W113 Pagoda Rubber Buffer for Differential Mount Strut – 1113510444
| A 1103501100 | REAR AXLE | |
| A 1103501100 | REAR AXLE | |
| RATIO: | ||
| 1:4.1 | ||
| A 1113501500 | REAR AXLE | |
| Repalced by: A 1113502200 | ||
| A 1113502200 | REAR AXLE | |
| Repalced by: A 1103500203 | ||
| A 1103500203 | AXLE HOUSING | |
| A 1103500203 | AXLE HOUSING | |
| RATIO: | ||
| 1:4.08 | ||
| A 1103501000 | REAR AXLE | |
| RATIO: | ||
| 1:3.9 | ||
| A 1113501400 | REAR AXLE | |
| Repalced by: A 1113502100 | ||
| A 1113502100 | REAR AXLE | |
| RATIO: | ||
| 1:3.92 | ||
| A 1113501900 | REAR AXLE | |
| Repalced by: A 1103500003 | ||
| A 1103500003 | AXLE HOUSING | |
| RATIO: | ||
| 1:3.9 | ||
| A 1103501200 | REAR AXLE | |
| RATIO: | ||
| 1:4.1 | ||
| A 1103501300 | REAR AXLE | |
| Repalced by: A 1113502300 | ||
| A 1113502300 | REAR AXLE | |
| Repalced by: A 1103500203 | ||
| A 1103500203 | AXLE HOUSING | |
| RATIO: | ||
| 1:4.08 | ||
| A 1103500203 | AXLE HOUSING | |
| A 1103500203 | AXLE HOUSING | |
| A 1103500003 | AXLE HOUSING | |
| A 1103500120 | AXLE HOUSING | |
| Repalced by: A 1103500220 | ||
| 005 | A 1103500220 | AXLE HOUSING |
| 009 | A 1869970032 | SCREW PLUG |
| 011 | A 1113500923 | DIFFERENTIAL GEAR |
| A 1803530501 | DIFFERENTIAL CASE | |
| Repalced by: A 1103530101 | ||
| A 1103530101 | DIFFERENTIAL CASE | |
| 015 | A 1103530048 | RING |
| 017 | A 1153531162 | THRUST WASHER |
| 1.3 MM | ||
| A 1803531162 | THRUST WASHER | |
| Repalced by: A 1153531062 | ||
| A 1153531062 | THRUST WASHER | |
| 1.4 MM | ||
| A 1803531262 | THRUST WASHER | |
| Repalced by: A 1153530962 | ||
| A 1153530962 | THRUST WASHER | |
| 1.5 MM | ||
| A 1803531362 | THRUST WASHER | |
| Repalced by: A 1153530862 | ||
| A 1153530862 | THRUST WASHER | |
| 1.6 MM | ||
| A 1153530762 | THRUST WASHER | |
| 1.7 MM | ||
| 019 | A 1103530215 | SIDE GEAR |
| LEFT | ||
| A 1103530015 | SIDE GEAR | |
| 021 | A 1103500140 | DIFFERENTIAL PINION |
| RIGHT | ||
| A 1103500040 | DIFFERENTIAL PINION | |
| 025 | A 1103530214 | DIFFERENTIAL PINION |
| 029 | A 1803530024 | SPHERICAL WASHER |
| 035 | A 1803530021 | PIN |
| 037 | A 1363530274 | PIN |
| A 1103500339 | RING GEAR AND PINION | |
| RATIO: | ||
| 1:3.9 | ||
| 039 | A 1113500739 | RING GEAR AND PINION |
| RATIO: | ||
| 1:4.08 | ||
| 039 | A 1113500739 | RING GEAR AND PINION |
| RATIO: | ||
| 1:4.08 | ||
| 041 | A 1085860135 | REPAIR KIT |
| 042 | A 1289900001 | SCREW |
| 045 | N 000720030208 | TAPERED ROLLER BEARING |
| A 1283532252 | SPACER WASHER | |
| 1.7 MM | ||
| 047 | A 1283530052 | SPACER WASHER |
| 1.8 MM | ||
| A 1283530152 | SPACER WASHER | |
| 1.9 MM | ||
| A 1283530252 | SPACER WASHER | |
| 2.0 MM | ||
| A 1283530352 | SPACER WASHER | |
| 2.1 MM | ||
| A 1283530452 | SPACER WASHER | |
| 2.2 MM | ||
| 051 | A 1103530125 | SCREW COLLAR |
| 053 | A 1803530173 | LOCK |
| A 1803530273 | LOCK | |
| A 1803530373 | LOCK | |
| A 1803530573 | LOCK | |
| A 1803530673 | LOCK | |
| 057 | A 1809940030 | LOCK |
| 061 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 061 | N 304017006018 | SCREW |
| 065 | A 0009801002 | TAPERED ROLLER BEARING |
| 069 | A 1103530242 | SPACER BUSHING |
| 072 | A 0009800102 | TAPERED ROLLER BEARING |
| A 0009800302 | TAPERED ROLLER BEARING | |
| A 0009801102 | TAPERED ROLLER BEARING | |
| 075 | A 1283530552 | SPACER WASHER |
| 0.80 MM | ||
| A 1283530752 | SPACER WASHER | |
| 0.90 MM | ||
| A 1283530952 | SPACER WASHER | |
| 1.00 MM | ||
| A 1283531152 | SPACER WASHER | |
| 1.10 MM | ||
| A 1283531352 | SPACER WASHER | |
| 1.20 MM | ||
| A 1283531552 | SPACER WASHER | |
| 1.30 MM | ||
| A 1283531752 | SPACER WASHER | |
| 1.40 MM | ||
| A 1283531952 | SPACER WASHER | |
| 1.50 MM | ||
| A 1103530208 | COVER | |
| 079 | A 1103530308 | COVER |
| 081 | N 070613010000 | SCREW |
| 085 | N 000127010200 | LOCK WASHER |
| 087 | A 0049975646 | SEAL RING |
| A 0059974146 | SEAL RING | |
| A 1103500145 | FLANGE | |
| 089 | A 1113500166 | GROOVED NUT |
| 090 | A 1119940244 | LOCK |
| 095 | N 304017008023 | SCREW |
| 099 | N 000127008203 | LOCK WASHER |
| 102 | A 1103501219 | REAR AXLE TUBE |
| LEFT | ||
| 105 | A 1103501319 | REAR AXLE TUBE |
| RIGHT | ||
| 107 | A 1803510150 | BUSHING |
| A 1103202443 | BRACKET | |
| LEFT | ||
| A 1103202543 | BRACKET | |
| RIGHT | ||
| 110 | A 1153500290 | VALVE |
| A 1103500213 | JOINT | |
| Repalced by: A 1103500413 | ||
| 130 | A 1103500413 | JOINT |
| 132 | A 1803570152 | SPACER WASHER |
| 135 | A 0009942941 | LOCK |
| A 1113500113 | JOINT | |
| N 000471032000 | LOCK RING | |
| 139 | A 1103500048 | SLEEVE |
| 142 | A 1809810086 | ROLLER |
| 147 | A 1883570052 | SPACER WASHER |
| 151 | N 000472048000 | LOCK RING |
| A 1113500028 | UNIVERSAL JOINT | |
| A 1123500028 | UNIVERSAL JOINT | |
| Repalced by: A 1123500128 | ||
| 165 | A 1123500128 | UNIVERSAL JOINT |
| A 1209940135 | SNAP RING | |
| 2.25 MM | ||
| A 1209940435 | SNAP RING | |
| 2.35 MM | ||
| A 1209940635 | SNAP RING | |
| 2.40 MM | ||
| A 1209940735 | SNAP RING | |
| 2.45 MM | ||
| A 1209940835 | SNAP RING | |
| 2.55 MM | ||
| 169 | A 1869941235 | SNAP RING |
| 2.15 MM | ||
| A 1869940435 | SNAP RING | |
| 2.25 MM | ||
| A 1869941535 | SNAP RING | |
| 2.35 MM | ||
| A 1869941735 | SNAP RING | |
| 2.45 MM | ||
| A 1869941935 | SNAP RING | |
| 2.55 MM | ||
| 172 | A 1109970032 | SCREW PLUG |
| 175 | N 000127010200 | LOCK WASHER |
| 179 | A 1803533052 | SPACER WASHER |
| 1.0 MM | ||
| A 1803533152 | SPACER WASHER | |
| 1.1 MM | ||
| A 1803533352 | SPACER WASHER | |
| 1.2 MM | ||
| A 1803533552 | SPACER WASHER | |
| 1.3 MM | ||
| A 1803533752 | SPACER WASHER | |
| 1.4 MM | ||
| A 1803533952 | SPACER WASHER | |
| 1.5 MM | ||
| A 1803534152 | SPACER WASHER | |
| 1.6 MM | ||
| A 1803534352 | SPACER WASHER | |
| 1.7 MM | ||
| A 1803534552 | SPACER WASHER | |
| 1.8 MM | ||
| A 1803534752 | SPACER WASHER | |
| 1.9 MM | ||
| A 1803534952 | SPACER WASHER | |
| 2.0 MM | ||
| 182 | A 1103570491 | BOOT |
| 185 | A 1103570391 | BOOT |
| SPLIT | ||
| 191 | A 0029881078 | CLIP |
| SPLIT | ||
| A 1103500510 | AXLE SHAFT | |
| Repalced by: A 1103571101 | ||
| A 1103500610 | AXLE SHAFT | |
| Repalced by: A 1103571201 | ||
| 195 | A 1103571101 | REAR AXLE SHAFT |
| LEFT | ||
| A 1103571201 | REAR AXLE SHAFT | |
| RIGHT | ||
| A 1103571501 | REAR AXLE SHAFT | |
| RIGHT | ||
| A 1103500710 | AXLE SHAFT | |
| Repalced by: A 1103571101 | ||
| A 1103571101 | REAR AXLE SHAFT | |
| LEFT | ||
| A 1103500810 | AXLE SHAFT | |
| Repalced by: A 1103571201 | ||
| A 1103571201 | REAR AXLE SHAFT | |
| RIGHT | ||
| A 1204010171 | WHEEL MOUNTING BOLT | |
| 201 | A 0019811525 | BALL BEARING |
| Repalced by: A 0029812301 | ||
| 201 | A 0029812301 | CYLINDR. ROLLER BEARING |
| A 0009810506 | BARREL-TYPE BEARING | |
| 205 | A 1833530373 | LOCK |
| 207 | A 1533570026 | GROOVED NUT |
| 209 | N 000933010164 | SCREW |
| 211 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 211 | N 304017008021 | SCREW |
| N 900288088003 | CLAMP | |
| REAR AXLE TUBE | ||
| N 900288121000 | CLAMP | |
| REAR AXLE HOUSING | ||
| 215 | A 1804210801 | BRAKE DRUM |
| 217 | A 1113500068 | REPAIR KIT |
| A 1803510674 | PIN | |
| 221 | A 1103510074 | PIN |
| 225 | A 1803510153 | SPACER TUBE |
| 230 | A 1803511452 | SPACER WASHER |
| 2.0 MM | ||
| 232 | A 1803511352 | SPACER WASHER |
| Repalced by: A 1803511452 | ||
| 232 | A 1803511452 | SPACER WASHER |
| 1.9 MM | ||
| A 1803511452 | SPACER WASHER | |
| 2.0 MM | ||
| A 1803511552 | SPACER WASHER | |
| 2.1 MM | ||
| A 1803511652 | SPACER WASHER | |
| 2.2 MM | ||
| A 1803511752 | SPACER WASHER | |
| 2.3 MM | ||
| A 1803511852 | SPACER WASHER | |
| 2.4 MM | ||
| A 1803511952 | SPACER WASHER | |
| 2.5 MM | ||
| A 1803512052 | SPACER WASHER | |
| 3.0 MM | ||
| 235 | A 1803510351 | SPACER RING |
| 239 | A 1803510986 | RUBBER RING |
| 241 | A 1803510074 | PIN |
| 245 | N 000127008200 | LOCK WASHER |
| 247 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 247 | N 304032008006 | NUT |
| 251 | A 1809940341 | LOCK |
| 253 | N 000443020000 | EXPANSION PLUG |
| A 1803511153 | SPACER TUBE | |
| 257 | A 1809970430 | SCREW PLUG |
| 261 | A 1809940112 | LOCK |
| 265 | N 071412006100 | GREASE NIPPLE |
| 271 | N 071412006200 | GREASE NIPPLE |
| A 1113500275 | RUBBER MOUNTING | |
| A 1803500975 | RUBBER MOUNTING | |
| Repalced by: A 1113500275 | ||
| A 1113500275 | RUBBER MOUNTING | |
| 276 | A 1103501275 | RUBBER MOUNTING |
| 279 | A 1093500032 | SUPPORT |
| 281 | N 001473003001 | GROOVED PIN |
| 285 | N 070614010018 | SCREW |
| 291 | N 000127010200 | LOCK WASHER |
| 295 | A 1103501029 | THRUST ARM |
| LEFT | ||
| A 1103501129 | THRUST ARM | |
| RIGHT | ||
| 301 | A 1103501475 | REPAIR KIT |
| A 1103521865 | RUBBER MOUNTING | |
| 302 | A 1113520509 | PIVOT PIN |
| 305 | A 1113521276 | WASHER |
| 310 | N 009045032000 | SNAP RING |
| 315 | A 1103520151 | SPACER RING |
| 317 | A 1113520171 | SCREW |
| A 1113520371 | SCREW | |
| A 1113520173 | LOCK | |
| 320 | A 1103500675 | RUBBER MOUNTING |
| REAR SUBFRAME MOUNTING | ||
| A 1123500175 | RUBBER MOUNTING | |
| Repalced by: A 1123500475 | ||
| A 1123500475 | RUBBER MOUNTING | |
| REAR SUBFRAME MOUNTING | ||
| A 1123500475 | RUBBER MOUNTING | |
| REAR SUBFRAME MOUNTING | ||
| 324 | A 1113500567 | THRUST WASHER |
| REAR SUBFRAME MOUNTING | ||
| A 1103500067 | THRUST WASHER | |
| REAR SUBFRAME MOUNTING | ||
| A 1103510045 | PAD | |
| SCREW COLLAR TO AXLE HOUSING | ||
| A 1103500167 | THRUST WASHER | |
| REAR SUBFRAME MOUNTING | ||
| A 1123510145 | PAD | |
| REAR SUBFRAME MOUNTING | ||
| A 1123510245 | PAD | |
| HOMOKINETIC JOINT | ||
| A 1103510051 | SPACER RING | |
| REAR SUBFRAME MOUNTING | ||
| 327 | N 000961016004 | SCREW |
| REAR SUBFRAME MOUNTING | ||
| N 000961016009 | SCREW | |
| REAR SUBFRAME MOUNTING | ||
| N 000961016004 | SCREW | |
| REAR SUBFRAME MOUNTING | ||
| 331 | N 000127016200 | LOCK WASHER |
| REAR SUBFRAME MOUNTING | ||
| 335 | N 000933010128 | SCREW |
| REAR SUBFRAME MOUNTING | ||
| 339 | N 000127010200 | LOCK WASHER |
| REAR SUBFRAME MOUNTING | ||
| 341 | A 1103500493 | ROD |
| 344 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 344 | N 308673014001 | NUT |
| 347 | A 1113510340 | BRACKET |
| 351 | A 1113510448 | RUBBER MOUNTING |
| 355 | A 1113510240 | BRACKET |
| 358 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 358 | N 304017010028 | SCREW |
| 361 | N 000137010201 | SPRING WASHER |
| 364 | N 000960012163 | SCREW |
| 367 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 367 | N 000137012206 | SPRING WASHER |
| 371 | A 1103510743 | CUP |
| 374 | A 1113510444 | RUBBER BUFFER |
| 376 | A 1103510643 | CUP |
| 378 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 378 | N 308673012002 | NUT |
| 380 | N 007967012000 | NUT |
| 385 | A 1103521065 | RUBBER MOUNTING |
| 388 | A 1103520042 | MOUNTING PLATE |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| MOUNTING PLATE TO BODY FLOOR | ||
| 392 | A 1089900340 | WASHER |
| MOUNTING PLATE TO BODY FLOOR | ||
| N 000125008407 | WASHER | |
| MOUNTING PLATE TO BODY FLOOR | ||
| N 000127008203 | LOCK WASHER | |
| MOUNTING PLATE TO BODY FLOOR | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| MOUNTING PLATE TO BODY FLOOR | ||
| 395 | N 912004014100 | LOCK WASHER |
| 399 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 399 | N 308673014001 | NUT |
